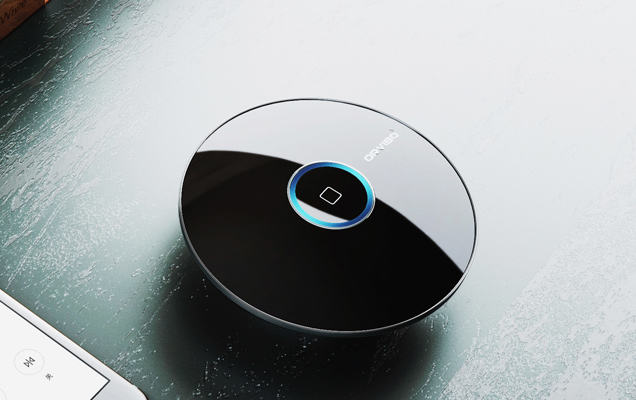

ALLONE PRO RF SMART HUB

SMART RF HUB AND IR REMOTE CONTROLLER

RF 433 Protocol | IR Remote Control | APP Remote Control

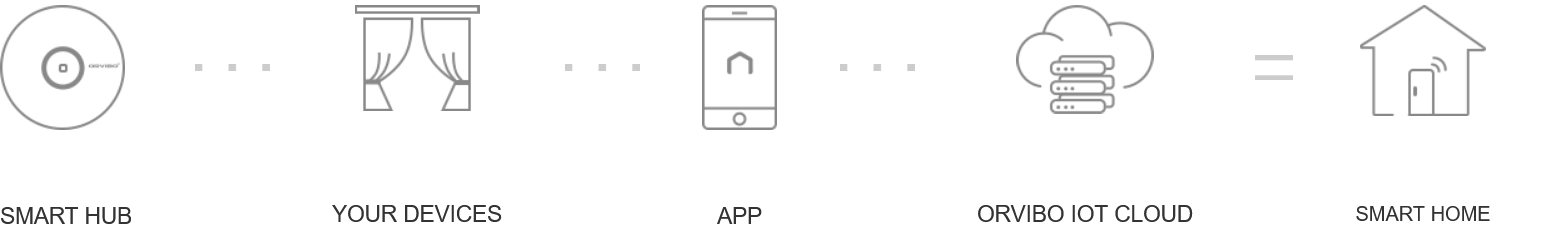

THREE STEPS TO MAKE YOUR SMART LIFE COME TRUE

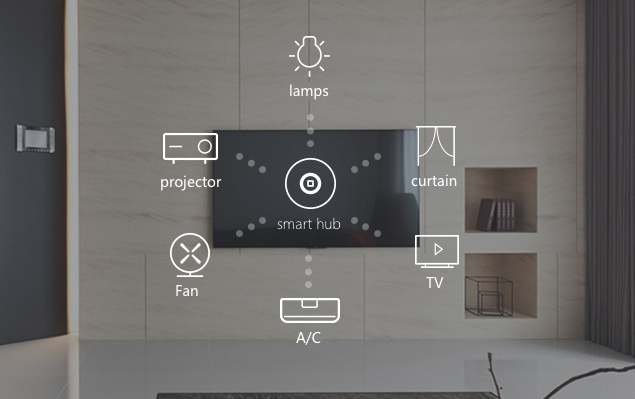

01. CONTROL MULTIPLE RF DEVICES OF DIFFERENT BRANDS

Connect multiple third-party RF products of different brands, and provide more competitive smart home solution to users.

02. REAL-TIME UPDATION OF RF PROTOCOLS ON CLOUD

Supports many of RF433 products in the market including curtain motors, lighting switches, clothes hanger, etc., and improved the security by RF encryption.

03. SUPPORT 95% IR HOME APPLIANCES IN THE MARKET

Support most of the IR home appliances in the market including A/C, TV, fan, projector, set top box, etc., and support 8000+ different models of IR devices.

LIFE COULD BE SO EASY WITH VOICE CONTROL

Support Amazon Alexa and Google Home to enable the voice control on the IR home appliances (TV, A/C) and the curtains.

STANDARDIZED AND CUSTOMIZABLE SMART HOME APP

HomeMate APP from ORVIBO has user-friendly interactions and functions. By settings,
users can experience kinds of smart scenes in daily life. And with the open API,
HomeMate is available for manufacturers to customize their own APP.

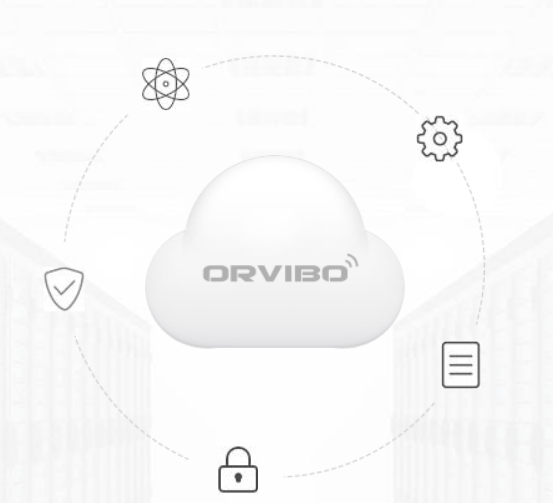

SAFE AND STABLE CLOUD SERVICE, SUPPORT MILLIONS DEVICES ACCESS

ORVIBO provide cloud service platform, support multiple protocols, compatible with millions devices, and with financial level encryption, strictly keep the data safe by five-layers protections.

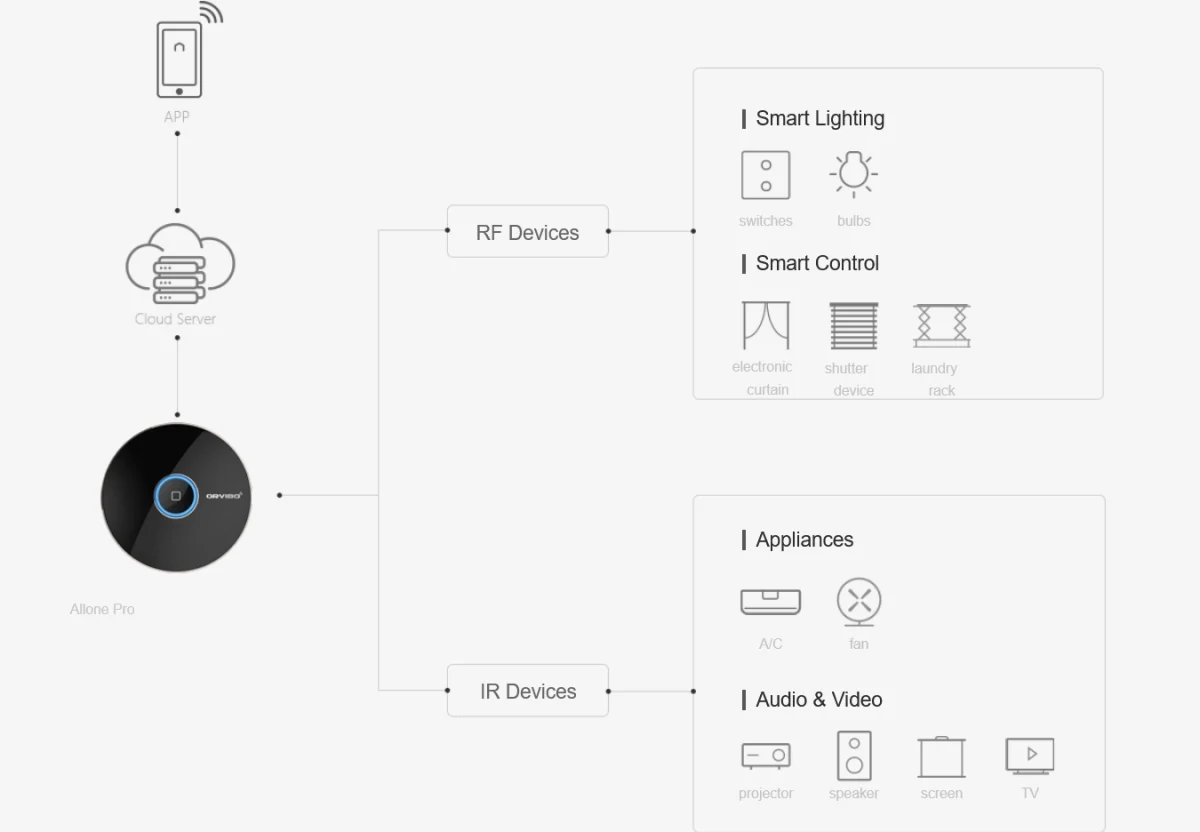

RF SMART SYSTEM DIAGRAM

Patent technology of real-time cloud update system with RF protocol

8000+

Support over 8000 IR home appliances models of different brands

300m

Over 300 meters of the available RF control distance

20+

Work with 20+ traditional RF device factories

PRODUCT PARAMETERS

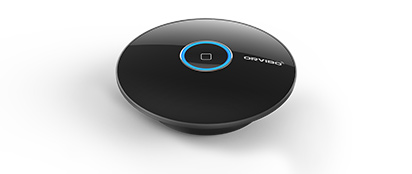

Appearance：

「 VS20RB 」

Size： 110*110*31mm

Material： PC/ABS/Nickel Plated Iron

Net Weight： 185±3g

Wi-Fi Network： Wi-Fi 2.4GHz 802.11 b/g/n

RF Type： RF 433.92MHz

Modulation Way： OOK/2FSK/2GFSK/GMSK

IR Frequency： 20~60KHz

Working Temp： -20~55℃

Input Power： 5V === 1A Micro USB

Standby Power Consumption： ＜0.5W

ALLONE PRO RF SMART HUB
